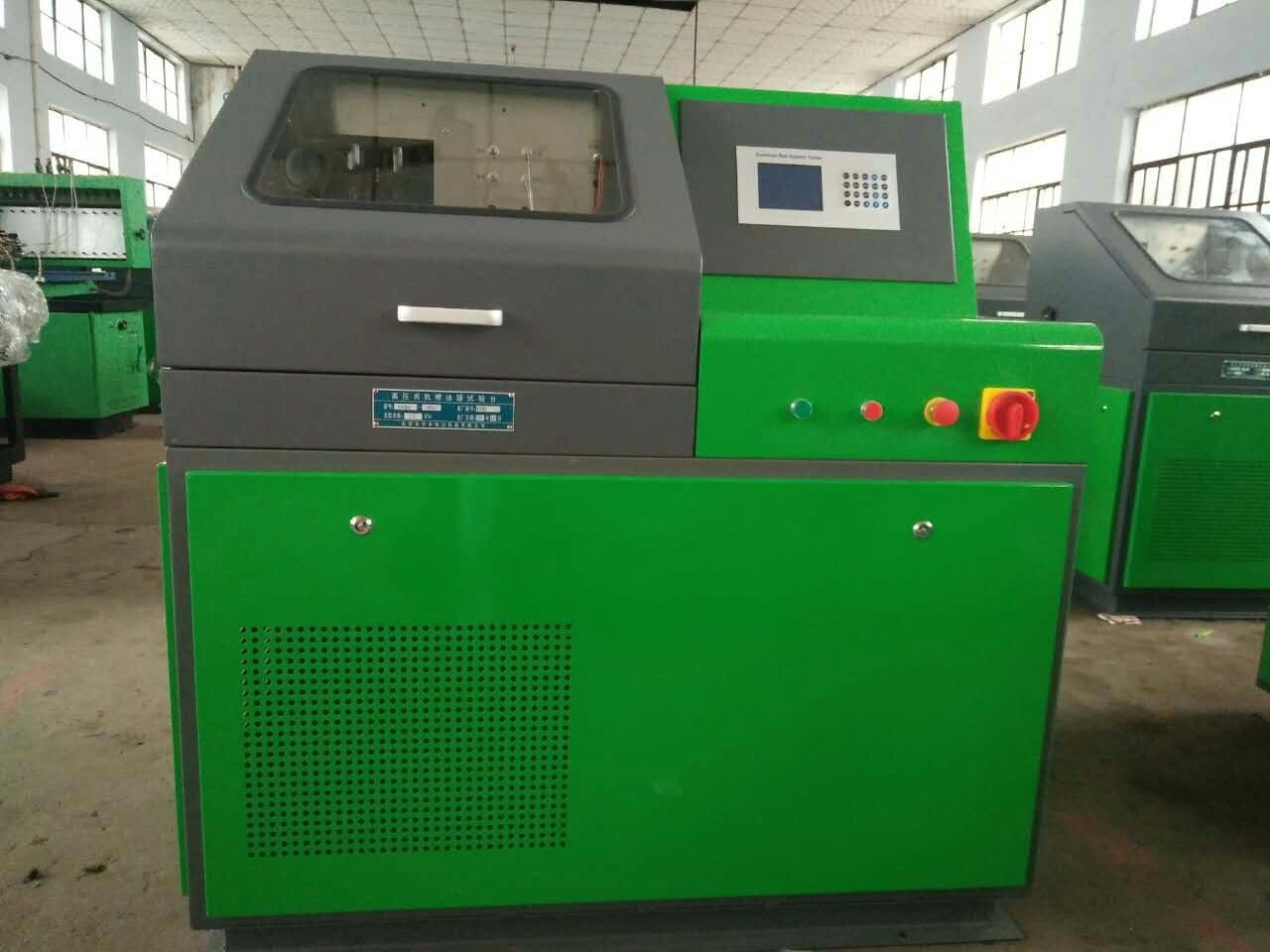

CRI-716 High Pressure Common Rail Injector Test Bench:
First, use:
1, detection of sealing, full load, medium speed, idle, pre-injection and other conditions common rail injector fuel injection and oil return;
2, check the common rail injector opening pressure;
3, check the common rail injector seal;
4, check the common rail injector atomization quality;
5, high-pressure common rail injector flushing.
6, with the detection of piezoelectric crystal injector function.
Second, features:
1, rail pressure automatic open-loop closed-loop control;
2, the amount of fuel injection and back to the amount of glass cylinder measurement of safe, reliable, high precision;
3, the host pump drive, BOSCH common rail pump oil;
4, can detect a variety of brands of common rail injector, such as Bosch, Denso, Delphi, Siemens, etc .;
5, industrial computer liquid crystal display, embedded operating system;
6, pulse power automatically issued;
7, user-friendly interface, operation and more convenient.
Third, the technical parameters:
1, the supply pressure: 0 ~ 200MPa arbitrary set;
2, the pressure display accuracy: ± 0.1 MPa;
3, measuring cylinder capacity: 32mm / 120mm;
4, the host power 2.2KW;
5, the host power: 380V / 50HZ;
6, Length 1350 Width 850 Height 1400 (Unit: mm);
7, Weight: 350kg.
