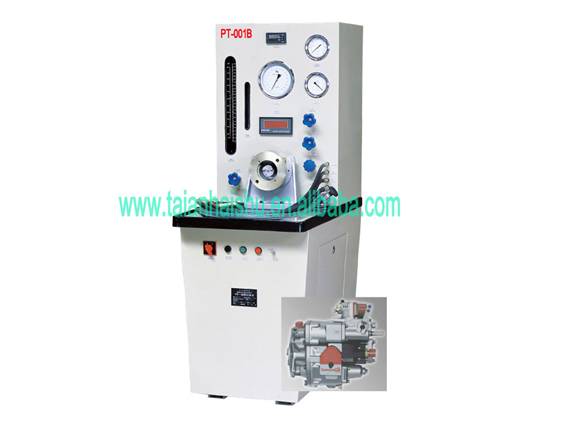

PT-001B Cummins PT fuel pump test bench
Brief introduction

Use
PT-001B oil pump test bench for Fuel Injection Equipment maintenance organizations, universities, research institutes Cummins PT fuel pump debugging, maintenance and testing.
The specific content of the test bench debugging:
1. Speed governor works
2. High idle
3. Idling traffic
4. The throttle shaft leaks
5. AFC indicators
6. No air indicators
7. EFC actuator leaks
8. Gear pump check
9. The stop valve is closed flexibility check
10. Rated point
11. Check point pressure
Characteristics
Inverter speed, high precision, easy to operate, energy saving.
2. the traffic, the main pressure, pressure, vacuum all imperial units.
3. special double-float rotameter.
Main technical parameters
1. Speed: 0 ~ 4200rpm
2. The pressure gauge: 0 ~ 400psi
3. The main flow meter: 75 ~ 2400Lb / h
4. Idle speed / leakage flow meter: 10 ~ 760cc/mm
5. Vacuum table: 0 ~ 30in.Hg
6. Barometer: 0 ~ 30psi
7. Power: 5.5KW
8. Power: AC 380V 50HZ
9. DC power: 0 ~ with 30V 3A
10. Oil temperature: 38 ± 2 ° C
11. Dimensions: 600 × 1000 × 1630mm
12. Weight: 350Kg
